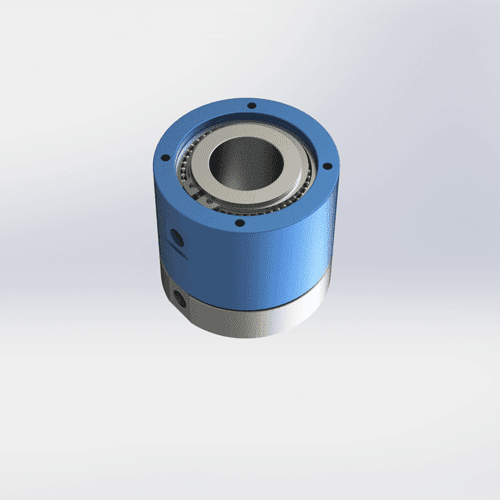

2-in, 2-out, 30-hole rotary joint

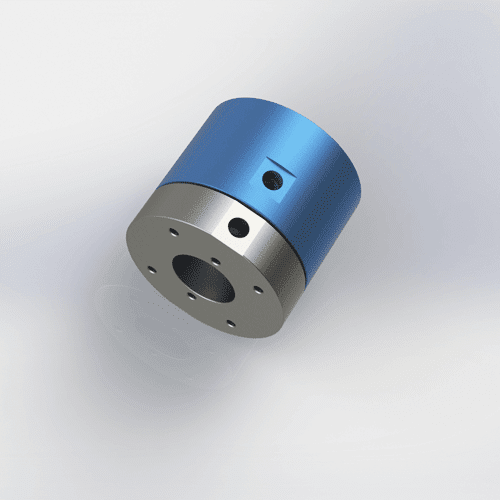

2-in 2-out 30-hole rotary joint - Image 2

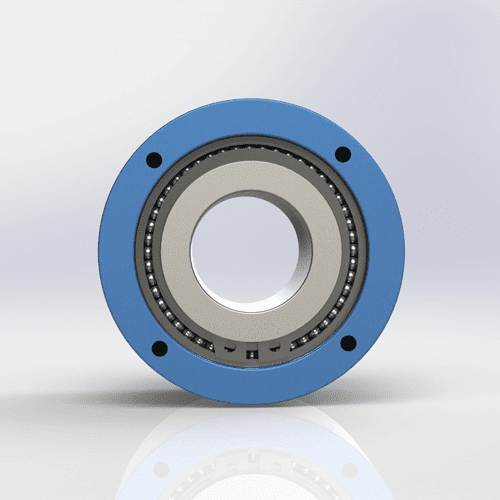

2-in 2-out 30-hole rotary joint - Image 3

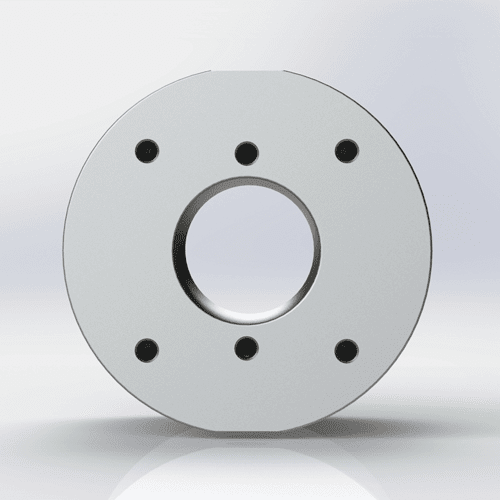

2-in 2-out 30-hole rotary joint - Image 4

2-in 2-out 30-hole rotary joint

  • • Material: Aerospace Aluminum Alloy or Stainless Steel
  • • Media: Air, Water, Hydraulic Oil
  • • Seal: Teflon
  • • Thread Specification: G1/8, G1/4, G1/2, NPT 1/2, NPT 3/8
  • • Pressure: MAX 30 MPa
  • • Speed: MAX 3000 RPM
  • • Temperature: -20°C to 150°C
Consulting products

Enhancing Hydraulic Valve Precision: The 2-in 2-out 30-Hole Rotary Joint in High-Precision Honing Machines

In the demanding world of hydraulic component manufacturing, where tolerances as tight as 0.001mm define quality, the 2-in 2-out 30-hole rotary joint emerges as a critical enabler for high-precision honing machines. This advanced rotary joint facilitates dual inlet and outlet media flow across 30 precision-drilled holes, ensuring seamless coolant and lubricant delivery during rotational honing. For producers of hydraulic valves, where surface finish directly impacts flow efficiency and leak prevention, the 2-in 2-out rotary joint delivers unmatched rotational accuracy, minimizing vibration and extending tool life. This case study explores its integration in a European valve manufacturer’s honing line, highlighting how the 30-hole rotary joint transformed precision and productivity.

The Engineering Excellence of the 2-in 2-out 30-Hole Rotary Joint

The 2-in 2-out rotary joint is engineered for environments requiring rotational freedom without compromise. With two inlets for coolant and lubricant supply and two outlets for targeted distribution, its 30-hole configuration allows for uniform media dispersion, reducing thermal distortion in high-precision honing machines. Constructed from corrosion-resistant stainless steel with Teflon seals, the rotary joint withstands pressures up to 25 MPa and speeds to 1500 RPM, while maintaining temperatures from 0°C to 80°C. The M8 threading ensures easy mounting on honing mandrels, and the 30-hole array promotes even honing, achieving surface finishes below Ra 0.2μm—essential for hydraulic valves that demand zero porosity.
Unlike basic rotary joints, this 2-in 2-out design incorporates a labyrinth seal system, preventing ingress of honing debris, which often plagues traditional setups. Its compact 50mm bore supports high-volume flow without pressure drops, making the 2-in 2-out rotary joint ideal for the rotational demands of high-precision honing machines.

Case Study: Revolutionizing Valve Production at HydroValve Engineering

HydroValve Engineering, a Munich-based leader in hydraulic valves for automotive and aerospace, faced challenges in their high-precision honing machine line. Legacy joints caused uneven coolant distribution during 360° honing, leading to 18% valve rejections due to surface irregularities and a 25-minute average downtime per shift—costing €90,000 yearly. The team sought a rotary joint that could handle dual media streams for honing while ensuring rotational stability for 1,000+ valves daily.
The 2-in 2-out 30-hole rotary joint was selected for its media versatility. Installed at the honing spindle, one inlet-outlet pair routed coolant for thermal control, while the second managed lubricant for abrasive reduction. The 30-hole configuration dispersed flow evenly, syncing with the machine’s 1200 RPM for flawless bore finishing on 20mm-diameter hydraulic valves.
Implementation spanned three days with minimal disruption. Engineers calibrated the rotary joint using laser alignment tools, achieving 0.005mm concentricity. Integration with the machine’s Siemens PLC enabled real-time flow monitoring, auto-adjusting for load variations.

Measurable Impact: From Rejection to Excellence

The results were striking. Within two months, valve rejection rates plummeted 82% to under 3%, thanks to the 2-in 2-out rotary joint‘s precise media delivery, which eliminated honing waves. Throughput surged 35%, from 800 to 1,080 valves per day, with cycle times dropping 20% to 45 seconds per part. Maintenance intervals extended from weekly to monthly, saving €65,000 annually in tools and labor. The 30-hole rotary joint‘s durability shone, enduring 50,000 cycles with zero leaks, even in the oily, particulate-heavy environment.
“Switching to the 2-in 2-out rotary joint was a game-changer for our high-precision honing machines,” said Production Director Klaus Meier. “Our hydraulic valves now meet Tier 1 supplier standards with ease, and the rotary joint‘s rotational precision ensures every bore is perfect.”

Why This Rotary Joint Fits Your Honing Needs

For manufacturers prioritizing bore quality, the 2-in 2-out 30-hole rotary joint offers scalability for multi-spindle setups and compliance with ISO 9001. It cuts energy costs by 15% through efficient flow and supports sustainable practices with recyclable materials. In a market where hydraulic valves demand micron-level finishes, this rotary joint is indispensable.
Elevate your honing operations today—explore how the 2-in 2-out rotary joint can refine your high-precision honing machines. Contact us for tailored demos and integrations.
